Tutorial: Create your first Apache Iceberg™ table

Introduction

This tutorial covers how to create Apache Iceberg™ tables that use Snowflake as the catalog and support read and write operations. Iceberg tables for Snowflake combine the performance and query semantics of regular Snowflake tables with external cloud storage that you manage.

Complete this tutorial using a worksheet in Snowsight or using a Snowflake client such as SnowSQL. You can copy and paste the code examples, and then run them.

What you’ll learn

In this tutorial, you’ll learn how to do the following:

  • Create and configure an external volume for Snowflake-managed Iceberg tables. For demonstration purposes, the tutorial creates an external volume for Amazon S3.

  • Create two Iceberg tables that use Snowflake as the Iceberg catalog (Snowflake-managed tables).

  • Insert data into the Iceberg tables.

  • Query the Iceberg tables.

  • Delete rows from an Iceberg table.

Prerequisites

Before you start, you should be familiar with the following:

You need:

  • A Snowflake user with a role that has the privileges to perform the following actions:

    If using a 30-day trial account, you can log in as the user that was created for the account. This user has the role with the privileges needed to create the objects.

    If you don’t have a user with the necessary permissions, ask someone who does to create one for you. Users with the ACCOUNTADMIN role can create new users and grant them the required privileges.

  • Administrator access for your cloud storage provider in order to configure an external volume.

  • A storage bucket (or container) with the same cloud provider, in the same region that hosts your Snowflake account.

  • Access to the SNOWFLAKE_SAMPLE_DATA database in your account. Snowflake creates the sample database in new accounts by default. If the database has not been created in your account, see Using the Sample Database.

Set up a warehouse and database

Set up your environment by creating a warehouse and database for this tutorial.

CREATE WAREHOUSE iceberg_tutorial_wh
  WAREHOUSE_TYPE = STANDARD
  WAREHOUSE_SIZE = XSMALL;

USE WAREHOUSE iceberg_tutorial_wh;

CREATE OR REPLACE DATABASE iceberg_tutorial_db;
USE DATABASE iceberg_tutorial_db;
Copy

Create an external volume

Before you can create an Apache Iceberg™ table for Snowflake, you must have an external volume. An external volume is an account-level Snowflake object that stores an identity and access management (IAM) entity for your external cloud storage.

Snowflake uses the external volume to securely connect to your cloud storage to access table data and metadata.

For demonstration purposes, this step covers how to create an external volume for Amazon S3. To create an external volume for a different cloud storage service, see the following topics:

Create an IAM policy that grants access to your S3 location

To configure access permissions for Snowflake in the AWS Management Console, do the following:

  1. Log in to the AWS Management Console.

  2. From the home dashboard, search for and select IAM.

  3. From the left-hand navigation pane, select Account settings.

  4. Under Security Token Service (STS) in the Endpoints list, find the Snowflake region where your account is located. If the STS status is inactive, move the toggle to Active.

  5. From the left-hand navigation pane, select Policies.

  6. Select Create Policy.

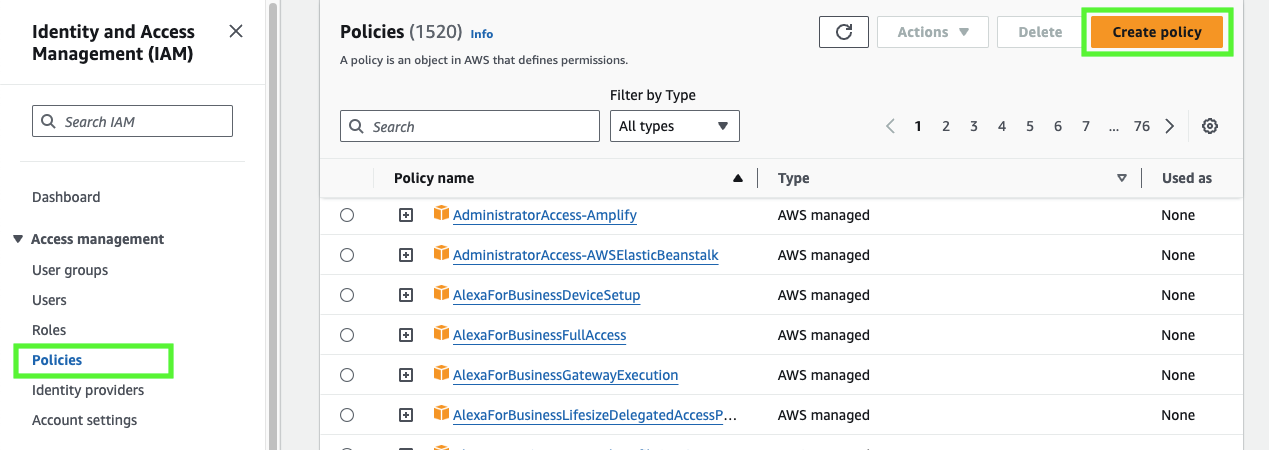

    Create an IAM policy in the AWS Management Console.
  7. For Policy editor, select JSON.

  8. Add a policy to provide Snowflake with the required permissions to read and write data to your S3 location.

    The following example policy grants access to all locations in the specified bucket.

    Note

    • Replace my_bucket with your actual bucket name. You can also specify a path in the bucket; for example, my_bucket/path.

    • Setting the "s3:prefix": condition to ["*"] grants access to all prefixes in the specified bucket; setting it to ["path/*"] grants access to a specified path in the bucket.

    • For buckets in government regions, the bucket ARNs use the arn:aws-us-gov:s3::: prefix.

    {
       "Version": "2012-10-17",
       "Statement": [
             {
                "Effect": "Allow",
                "Action": [
                   "s3:PutObject",
                   "s3:GetObject",
                   "s3:GetObjectVersion",
                   "s3:DeleteObject",
                   "s3:DeleteObjectVersion"
                ],
                "Resource": "arn:aws:s3:::<my_bucket>/*"
             },
             {
                "Effect": "Allow",
                "Action": [
                   "s3:ListBucket",
                   "s3:GetBucketLocation"
                ],
                "Resource": "arn:aws:s3:::<my_bucket>",
                "Condition": {
                   "StringLike": {
                         "s3:prefix": [
                            "*"
                         ]
                   }
                }
             }
       ]
    }

    Copy
  9. Select Next.

  10. Enter a Policy name (for example, snowflake_access) and an optional Description.

  11. Select Create policy.

Create an IAM role

Create an AWS IAM role to grant privileges on the S3 bucket containing your data files.

  1. From the left-hand navigation pane in the Identity and Access Management (IAM) Dashboard, select Roles.

  2. Select Create role.

  3. For the trusted entity type, select AWS account.

  4. Under An AWS account, select This account. In a later step, you modify the trust relationship and grant access to Snowflake.

  5. Select the Require external ID option. Enter an external ID of your choice. For example, iceberg_table_external_id.

    An external ID is used to grant access to your AWS resources (such as S3 buckets) to a third party like Snowflake.

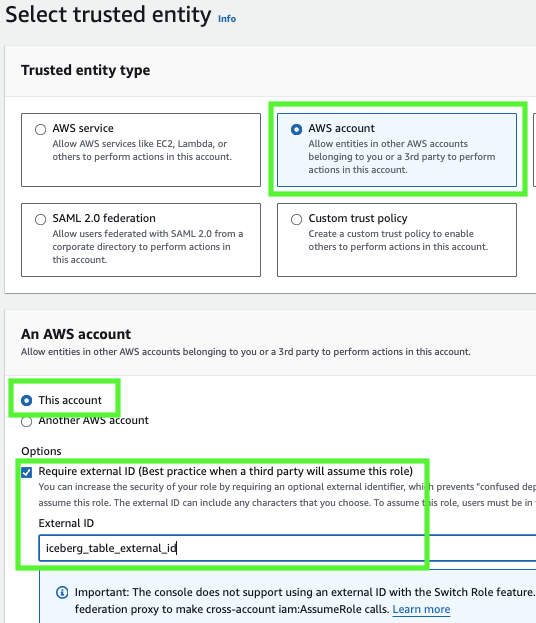

    Create an IAM role with an external ID.
  6. Select Next.

  7. Select the policy that you created for the external volume, then select Next.

  8. Enter a Role name and description for the role, then select Create role.

    You have now created an IAM policy for an S3 location, created an IAM role, and attached the policy to the role.

  9. Select View role to view the role summary page. Locate and record the ARN (Amazon Resource Name) value for the role.

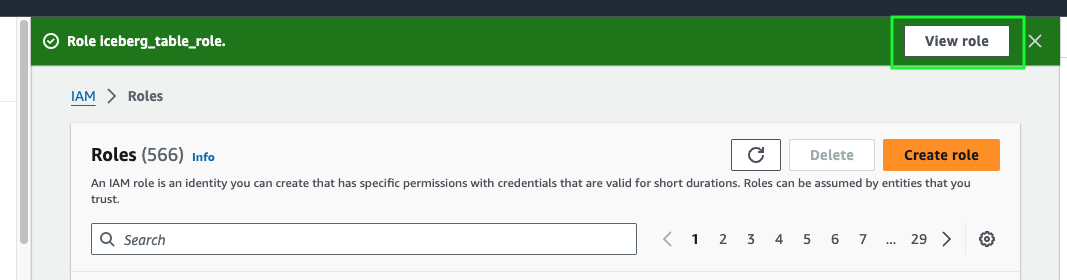

    Banner with link to view the new IAM role.

Create an external volume in Snowflake

Create an external volume using the CREATE EXTERNAL VOLUME command. The following example creates an external volume named iceberg_external_volume that defines a single Amazon S3 storage location with encryption.

CREATE OR REPLACE EXTERNAL VOLUME iceberg_external_volume
   STORAGE_LOCATIONS =
      (
         (
            NAME = 'my-s3-us-west-2'
            STORAGE_PROVIDER = 'S3'
            STORAGE_BASE_URL = 's3://<my_bucket>/'
            STORAGE_AWS_ROLE_ARN = '<arn:aws:iam::123456789012:role/myrole>'
            STORAGE_AWS_EXTERNAL_ID = 'iceberg_table_external_id'
         )
      );
Copy

The example specifies the external ID (iceberg_table_external_id) associated with the IAM role that you created for the external volume. Specifying an external ID lets you use the same IAM role (and external ID) across multiple external volumes.

Note

Specify ARNs exactly as provided by AWS. ARNs are case-sensitive.

Retrieve the AWS IAM user for your Snowflake account

  1. Retrieve the ARN for the AWS IAM user that was created automatically for your Snowflake account using the DESCRIBE EXTERNAL VOLUME command. Specify the name of your external volume.

    The following example describes an external volume named iceberg_external_volume.

    DESC EXTERNAL VOLUME iceberg_external_volume;

    Copy
  2. Record the value for the STORAGE_AWS_IAM_USER_ARN property, which is the AWS IAM user created for your Snowflake account; for example, arn:aws:iam::123456789001:user/abc1-b-self1234.

    Snowflake provisions a single IAM user for your entire Snowflake account. All S3 external volumes in your account use that IAM user.

    Note

    If you didn’t specify an external ID (STORAGE_AWS_EXTERNAL_ID) when you created an external volume, Snowflake generates an ID for you to use. Record the value so that you can update your IAM role trust policy with the generated external ID.

Grant the IAM user permissions to access bucket objects

In this step, you configure permissions that allow the IAM user for your Snowflake account to access objects in your S3 bucket.

  1. Log in to the AWS Management Console.

  2. From the home dashboard, search for and select IAM.

  3. From the left-hand navigation pane, select Roles.

  4. Select the IAM role that you created for your external volume.

  5. Select the Trust relationships tab.

  6. Select Edit trust policy.

  7. Modify the policy document with the DESC EXTERNAL VOLUME output values that you recorded.

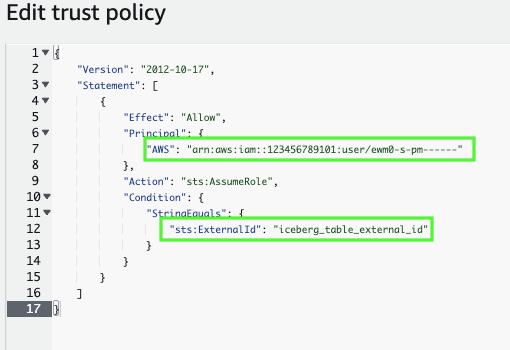

    Update the trust policy for the IAM role.

    Policy document for IAM role

    {
      "Version": "2012-10-17",
      "Statement": [
        {
          "Sid": "",
          "Effect": "Allow",
          "Principal": {
            "AWS": "<snowflake_user_arn>"
          },
          "Action": "sts:AssumeRole",
          "Condition": {
            "StringEquals": {
              "sts:ExternalId": "<iceberg_table_external_id>"
            }
          }
        }
      ]
    }

    Copy

    Where:

    • snowflake_user_arn is the STORAGE_AWS_IAM_USER_ARN value you recorded.

    • iceberg_table_external_id is your external ID. If you already specified an external ID when you created the role, and used the same ID to create your external volume, leave the value as-is. Otherwise, update sts:ExternalId with the value that you recorded.

    Note

    You must update this policy document if you create a new external volume (or recreate an existing external volume using the CREATE OR REPLACE EXTERNAL VOLUME syntax) and don’t provide your own external ID. For security reasons, a new or recreated external volume has a different external ID and cannot resolve the trust relationship unless you update this trust policy.

  8. Select Update policy to save your changes.

Create a table

In this step, you’ll create two Apache Iceberg™ tables: one with the standard CREATE ICEBERG TABLE syntax, and another with the CREATE ICEBERG TABLE … AS SELECT variant. Both tables use the external volume configured in the previous step.

You’ll also learn how to set the Iceberg catalog and external volume at the database level.

Create a table using the standard syntax

First, create an Iceberg table using the standard CREATE ICEBERG TABLE syntax.

Specify CATALOG = 'SNOWFLAKE' so that the table uses Snowflake as the Iceberg catalog.

To tell Snowflake where to write table data and metadata, specify a value for the BASE_LOCATION parameter. The example sets the table name (customer_iceberg) as the BASE_LOCATION. This way, Snowflake writes data and metadata under a directory with the same name as the table in your external volume location.

CREATE OR REPLACE ICEBERG TABLE customer_iceberg (
    c_custkey INTEGER,
    c_name STRING,
    c_address STRING,
    c_nationkey INTEGER,
    c_phone STRING,
    c_acctbal INTEGER,
    c_mktsegment STRING,
    c_comment STRING
)
    CATALOG = 'SNOWFLAKE'
    EXTERNAL_VOLUME = 'iceberg_external_volume'
    BASE_LOCATION = 'customer_iceberg';
Copy

Later in the tutorial, you load data into this table from the snowflake_sample_data.tpch_sf1.customer table in the SNOWFLAKE_SAMPLE_DATA database. The column definitions in the CREATE ICEBERG TABLE statement match the sample table.

Note

If you check your cloud storage location, you should now see a directory named metadata/ that Snowflake wrote during table creation under your BASE_LOCATION. The directory stores the metadata files for your table.

Set the catalog integration and external volume for the database

Next, set the CATALOG and EXTERNAL_VOLUME parameters for the iceberg_tutorial_db that you created in this tutorial. Setting the parameters tells Snowflake to use the specific catalog and external volume that you choose for all Iceberg tables created after the change.

ALTER DATABASE iceberg_tutorial_db SET CATALOG = 'SNOWFLAKE';
ALTER DATABASE iceberg_tutorial_db SET EXTERNAL_VOLUME = 'iceberg_external_volume';
Copy

To verify, check the parameters for the current database (iceberg_tutorial_db):

SHOW PARAMETERS IN DATABASE ;
Copy

Create a table using CTAS

Finally, create a second Iceberg table called nation_iceberg using the CREATE ICEBERG TABLE … AS SELECT syntax. We’ll base the new table on the snowflake_sample_data.tpch_sf1.nation table in the Snowflake sample database.

Note

Since you just set the CATALOG and EXTERNAL_VOLUME parameters for the iceberg_tutorial_db database, you can omit both parameters from the CREATE ICEBERG TABLE statement. The nation_iceberg table will inherit the values from the database.

CREATE OR REPLACE ICEBERG TABLE nation_iceberg (
  n_nationkey INTEGER,
  n_name STRING
)
  BASE_LOCATION = 'nation_iceberg'
  AS SELECT
    N_NATIONKEY,
    N_NAME
  FROM snowflake_sample_data.tpch_sf1.nation;
Copy

Load data and query the tables

In this step, you start by loading data from the Snowflake sample database into the customer_iceberg table using INSERT INTO <table>:

INSERT INTO customer_iceberg
  SELECT * FROM snowflake_sample_data.tpch_sf1.customer;
Copy

Note

If you check your cloud storage location, you should now see a directory that contains your table data files at the following path: STORAGE_BASE_URL/BASE_LOCATION/customer_iceberg/data/.

Now that there’s data in the table, you can query the table. The following query joins the customer_iceberg table with the nation_iceberg table (which already contains data).

SELECT
    c.c_name AS customer_name,
    c.c_mktsegment AS market_segment,
    n.n_name AS nation
  FROM customer_iceberg c
  INNER JOIN nation_iceberg n
    ON c.c_nationkey = n.n_nationkey
  LIMIT 15;
Copy

Output:

+--------------------+----------------+----------------+
| CUSTOMER_NAME      | MARKET_SEGMENT | NATION         |
|--------------------+----------------+----------------|
| Customer#000015001 | HOUSEHOLD      | MOROCCO        |
| Customer#000015002 | BUILDING       | VIETNAM        |
| Customer#000015003 | BUILDING       | INDONESIA      |
| Customer#000015004 | FURNITURE      | SAUDI ARABIA   |
| Customer#000015005 | HOUSEHOLD      | KENYA          |
| Customer#000015006 | BUILDING       | UNITED KINGDOM |
| Customer#000015007 | MACHINERY      | FRANCE         |
| Customer#000015008 | HOUSEHOLD      | INDIA          |
| Customer#000015009 | FURNITURE      | EGYPT          |
| Customer#000015010 | HOUSEHOLD      | ETHIOPIA       |
| Customer#000015011 | FURNITURE      | UNITED KINGDOM |
| Customer#000015012 | BUILDING       | FRANCE         |
| Customer#000015013 | FURNITURE      | SAUDI ARABIA   |
| Customer#000015014 | HOUSEHOLD      | KENYA          |
| Customer#000015015 | MACHINERY      | ROMANIA        |
+--------------------+----------------+----------------+

Delete rows

In this step, you use a DELETE statement to remove specific rows from the customer_iceberg table.

Start by querying the first 10 rows of the table and notice that four rows belong to the AUTOMOBILE market segment:

SELECT
    c_name AS customer_name,
    c_mktsegment AS market_segment
  FROM customer_iceberg
  LIMIT 10;
Copy

Output:

+--------------------+----------------+
| CUSTOMER_NAME      | MARKET_SEGMENT |
|--------------------+----------------|
| Customer#000000001 | BUILDING       |
| Customer#000000002 | AUTOMOBILE     |
| Customer#000000003 | AUTOMOBILE     |
| Customer#000000004 | MACHINERY      |
| Customer#000000005 | HOUSEHOLD      |
| Customer#000000006 | AUTOMOBILE     |
| Customer#000000007 | AUTOMOBILE     |
| Customer#000000008 | BUILDING       |
| Customer#000000009 | FURNITURE      |
| Customer#000000010 | HOUSEHOLD      |
+--------------------+----------------+

Next, let’s use a DELETE statement to remove all of the rows from the table where the market segment is AUTOMOBILE:

DELETE FROM customer_iceberg WHERE c_mktsegment = 'AUTOMOBILE';
Copy

Output:

+------------------------+
| number of rows deleted |
|------------------------|
|                  29752 |
+------------------------+

Finally, you can double-check that the rows are gone:

SELECT
    c_name AS customer_name,
    c_mktsegment AS market_segment
 FROM customer_iceberg
 WHERE c_mktsegment = 'AUTOMOBILE';
Copy

Output:

+---------------+----------------+
| CUSTOMER_NAME | MARKET_SEGMENT |
|---------------+----------------|
+---------------+----------------+
0 Row(s) produced. Time Elapsed: 1.426s

Congratulations!

You’ve just written to, read from, and modified your first Snowflake-managed Iceberg tables. You’ve also learned how to configure an external volume for Iceberg table storage and set the Iceberg catalog and external volume for all Iceberg tables in a database.

Clean up

To delete all of the objects created for this tutorial, run the following DROP statements.

Replace the following values:

  • my_other_database with the name of a database to use so that you can drop the one created for this tutorial.

  • my_other_warehouse with the name of the external volume that you created.

DROP ICEBERG TABLE customer_iceberg;
DROP ICEBERG TABLE nation_iceberg;
DROP EXTERNAL VOLUME iceberg_external_volume;
USE DATABASE <my_other_database>;
DROP DATABASE iceberg_tutorial_db;
USE WAREHOUSE <my_other_warehouse>;
DROP WAREHOUSE iceberg_tutorial_wh;
Copy

Summary and additional resources

In this tutorial, you followed an end-to-end workflow for creating and using Snowflake-managed Apache Iceberg™ tables.

Along the way, you completed the following tasks:

To learn more about Iceberg tables for Snowflake, see the Iceberg tables documentation. For additional Iceberg tutorials and quickstarts, see the Snowflake tutorials page.
