Tutorial 1: Build a simple search application with Cortex Search¶

Introduction¶

This tutorial describes how to get started with Cortex Search for a simple search application.

Step 1: Setup¶

CREATE DATABASE IF NOT EXISTS cortex_search_tutorial_db;

CREATE OR REPLACE WAREHOUSE cortex_search_tutorial_wh WITH
     WAREHOUSE_SIZE='X-SMALL'
     AUTO_SUSPEND = 120
     AUTO_RESUME = TRUE
     INITIALLY_SUSPENDED=TRUE;

Step 2: Load the data into Snowflake¶

Before you can create a search service, you must load the example data into Snowflake.

You can upload the dataset in Snowsight or using SQL. To upload in Snowsight:

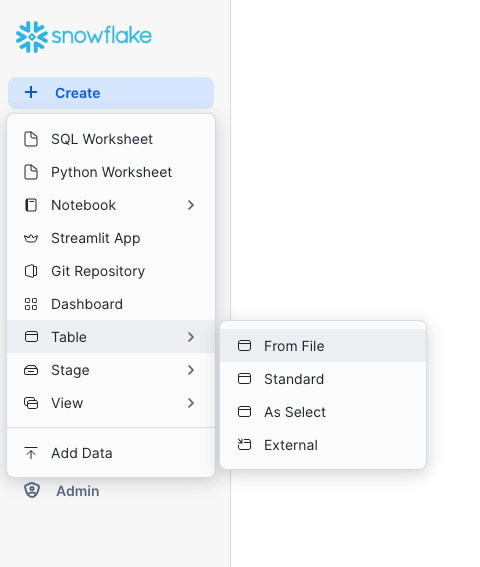

1. Select the + Create button above the left navigation bar.

2. Then select Table » From File.



3. Select your newly-created warehouse as a warehouse for your table from the drop-down at the top right corner.

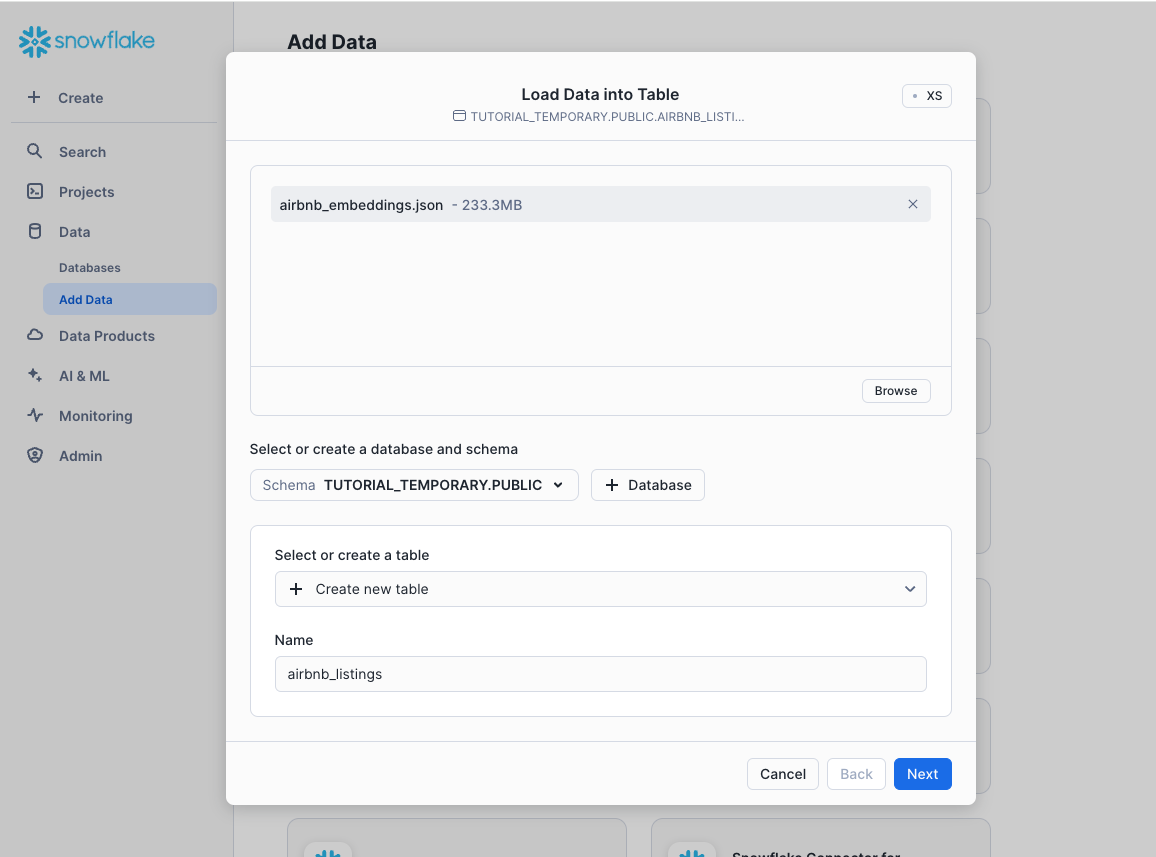

4. Drag and drop the JSON data file into the dialog.

5. Select the database you created above and specify the PUBLIC schema.

6. Finally, specify the creation of a new table called airbnb_listings and select Next.

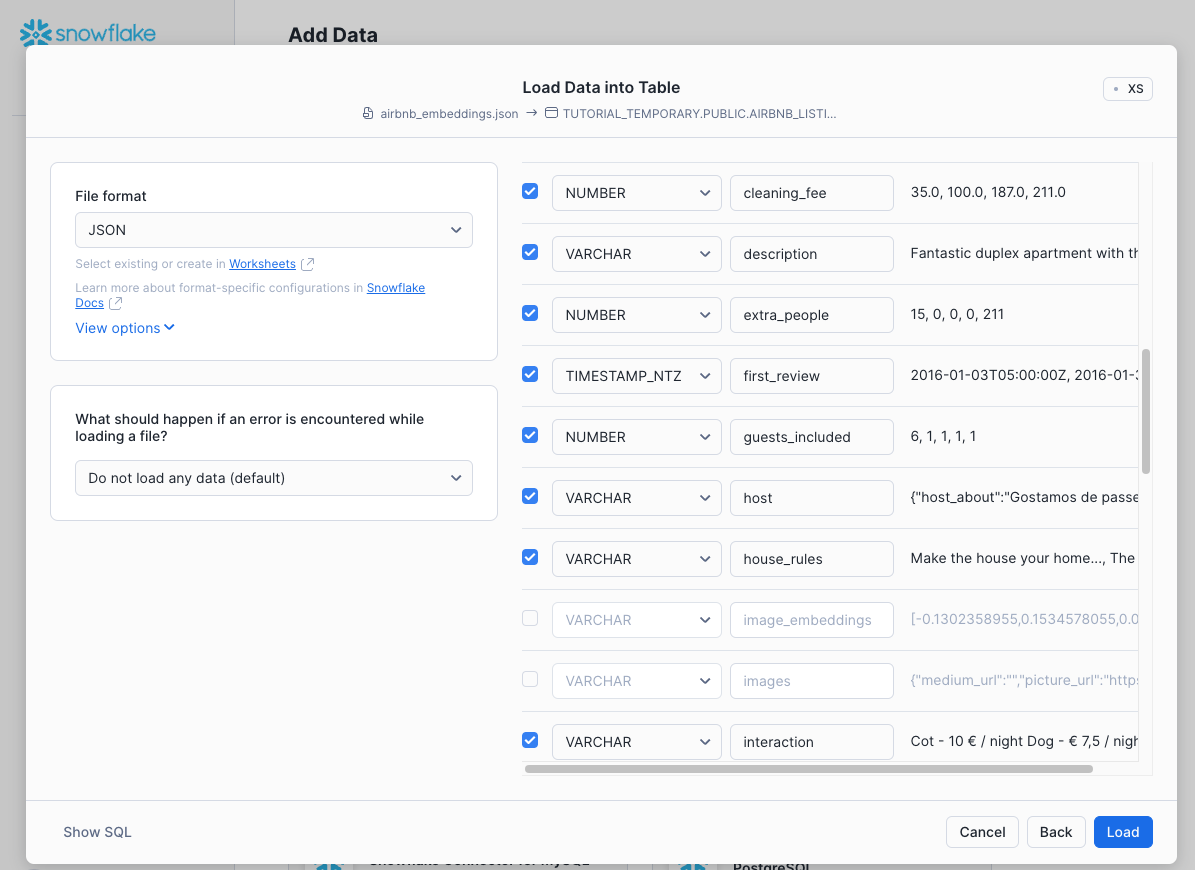

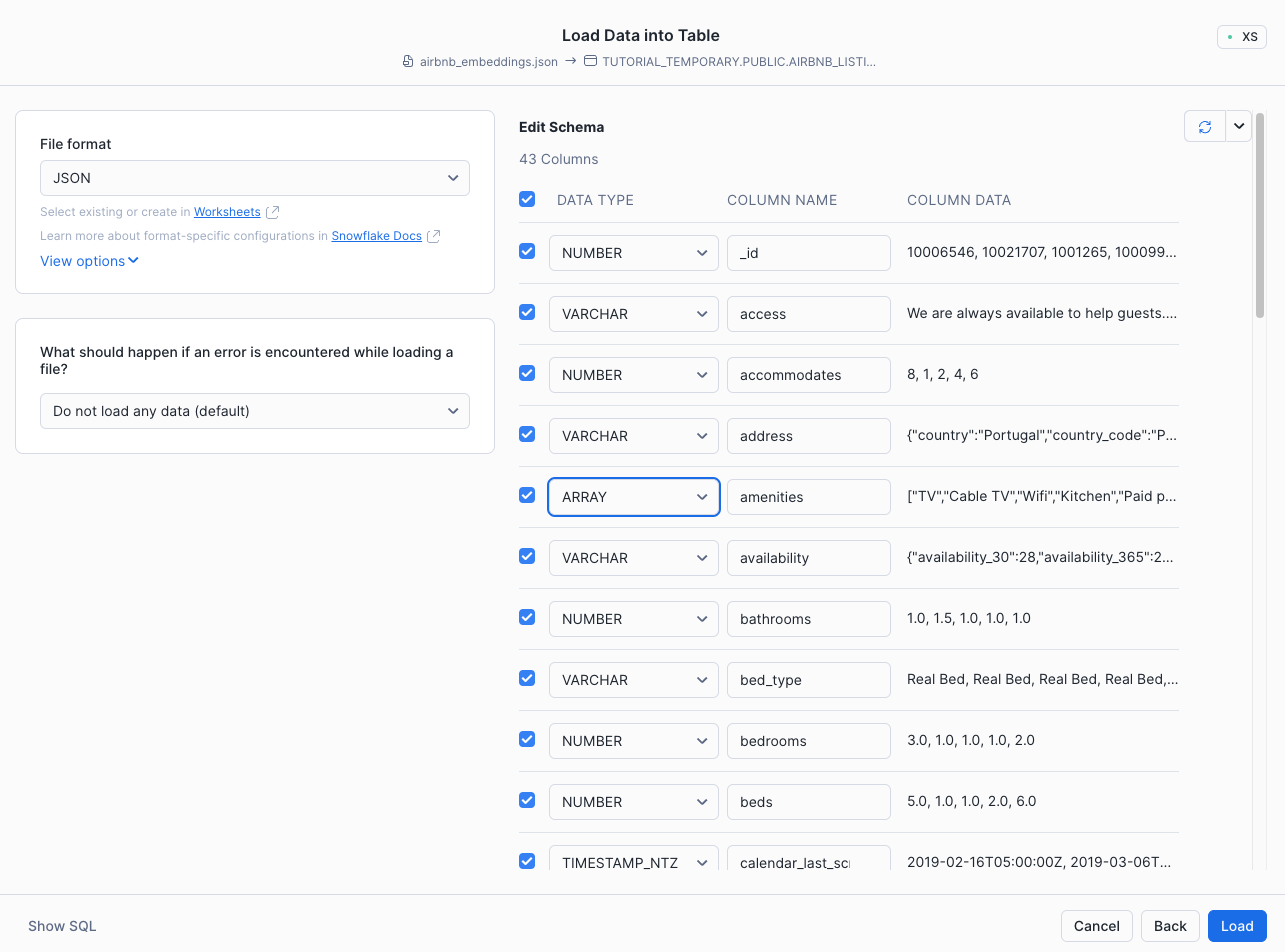

7. In the Load Data into Table dialog, make the following adjustments. First, uncheck the image_embeddings, images, and text_embeddings columns, since those do not apply to this tutorial. Second, adjust the datatype of the amenities field to be ARRAY type.





8. Once you have made these adjustments, Select Load to proceed.

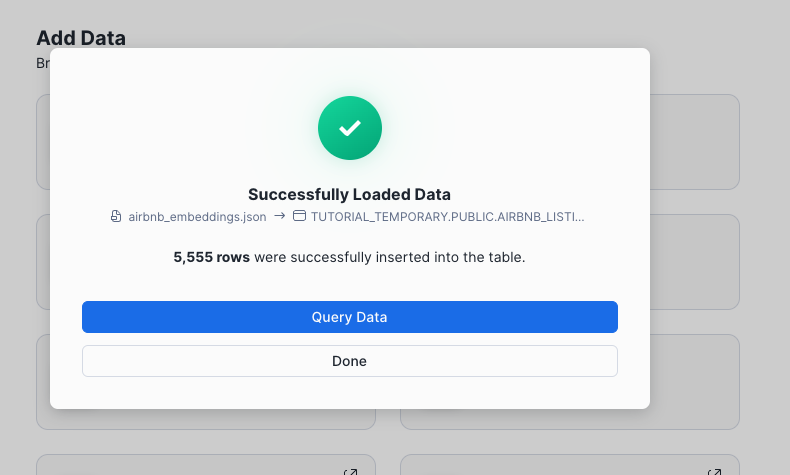

9. After a brief moment, you should see a confirmation page showing that the data has been loaded.



10. Select Query Data to open up a new Snowsight worksheet that you will use in the next step.

Step 3: Create the search service¶

Create a search service over our new table by running the following SQL command.

CREATE OR REPLACE CORTEX SEARCH SERVICE cortex_search_tutorial_db.public.airbnb_svc
ON listing_text
ATTRIBUTES room_type, amenities
WAREHOUSE = cortex_search_tutorial_wh
TARGET_LAG = '1 hour'
AS
    SELECT
        room_type,
        amenities,
        price,
        cancellation_policy,
        ('Summary\n\n' || summary || '\n\n\nDescription\n\n' || description || '\n\n\nSpace\n\n' || space) as listing_text
    FROM
    cortex_search_tutorial_db.public.airbnb_listings;

Let’s break down the arguments in this command:

• The ON parameter specifies the column for queries to search over. In this case, it’s the listing_text, which is generated in the source query as a concatenation of several text columns in the base table.

• The ATTRIBUTES parameter specifies the columns that you will be able to filter search results on. This example filers on room_type and amenities when issuing queries to the listing_text column.

• The WAREHOUSE and TARGET_LAG parameters specify the user-provided warehouse and the desired freshness of the search service, respectively. This example specifies to use the cortex_search_tutorial_wh warehouse to create the index and perform refreshes, and to keep the service no more than '1 hour' behind the source table AIRBNB_LISTINGS.

• The AS field defines the source table for the service. This example concatenates several text columns in the original table into the search column listing_text so that queries can search over multiple fields.

Step 4: Create a Streamlit app¶

You can query the service with Python SDK (using the snowflake Python package). This tutorial demonstrates using the Python SDK in a Streamlit in Snowflake application.

First, ensure your global Snowsight UI role is the same as the role used to create the service in the service creation step.

1. Sign in to Snowsight.

2. Select Projects » Streamlit in the left-side navigation menu.

3. Select + Streamlit App.

4. Important: Select the cortex_search_tutorial_db database and public schema for the app location.

5. In the left pane of the Streamlit in Snowflake editor, select Packages and add snowflake (version >= 0.8.0) to install the package in your application.

6. Replace the example application code with the following Streamlit app:

   # Import python packages
   import streamlit as st
   from snowflake.core import Root
   from snowflake.snowpark.context import get_active_session

   # Constants
   DB = "cortex_search_tutorial_db"
   SCHEMA = "public"
   SERVICE = "airbnb_svc"
   BASE_TABLE = "cortex_search_tutorial_db.public.airbnb_listings"
   ARRAY_ATTRIBUTES = {"AMENITIES"}


   def get_column_specification():
       """
       Returns the name of the search column and a list of the names of the attribute columns
       for the provided cortex search service
       """
       session = get_active_session()
       search_service_result = session.sql(f"DESC CORTEX SEARCH SERVICE {DB}.{SCHEMA}.{SERVICE}").collect()[0]
       st.session_state.attribute_columns = search_service_result.attribute_columns.split(",")
       st.session_state.search_column = search_service_result.search_column
       st.session_state.columns = search_service_result.columns.split(",")

   def init_layout():
       st.title("Cortex AI Search")
       st.markdown(f"Querying service: `{DB}.{SCHEMA}.{SERVICE}`".replace('"', ''))

   def query_cortex_search_service(query, filter={}):
       """
       Queries the cortex search service in the session state and returns a list of results
       """
       session = get_active_session()
       cortex_search_service = (
           Root(session)
           .databases[DB]
           .schemas[SCHEMA]
           .cortex_search_services[SERVICE]
       )
       context_documents = cortex_search_service.search(
           query,
           columns=st.session_state.columns,
           filter=filter,
           limit=st.session_state.limit)
       return context_documents.results

   @st.cache_data
   def distinct_values_for_attribute(col_name, is_array_attribute=False):
       session = get_active_session()
       if is_array_attribute:
           values = session.sql(f'''
           SELECT DISTINCT value FROM {BASE_TABLE},
           LATERAL FLATTEN(input => {col_name})
           ''').collect()
       else:
           values = session.sql(f"SELECT DISTINCT {col_name} AS VALUE FROM {BASE_TABLE}").collect()
       return [ x["VALUE"].replace('"', "") for x in values ]

   def init_search_input():
       st.session_state.query = st.text_input("Query")

   def init_limit_input():
       st.session_state.limit = st.number_input("Limit", min_value=1, value=5)

   def init_attribute_selection():
       st.session_state.attributes = {}
       for col in st.session_state.attribute_columns:
           is_multiselect = col in ARRAY_ATTRIBUTES
           st.session_state.attributes[col] = st.multiselect(
               col,
               distinct_values_for_attribute(col, is_array_attribute=is_multiselect)
           )

   def display_search_results(results):
       """
       Display the search results in the UI
       """
       st.subheader("Search results")
       for i, result in enumerate(results):
           result = dict(result)
           container = st.expander(f"[Result {i+1}]", expanded=True)

           # Add the result text.
           container.markdown(result[st.session_state.search_column])

           # Add the attributes.
           for column, column_value in sorted(result.items()):
               if column == st.session_state.search_column:
                   continue
               container.markdown(f"**{column}**: {column_value}")

   def create_filter_object(attributes):
       """
       Create a filter object for the search query
       """
       and_clauses = []
       for column, column_values in attributes.items():
           if len(column_values) == 0:
               continue
           if column in ARRAY_ATTRIBUTES:
               for attr_value in column_values:
                   and_clauses.append({"@contains": { column: attr_value }})
           else:
               or_clauses = [{"@eq": {column: attr_value}} for attr_value in column_values]
               and_clauses.append({"@or": or_clauses })

       return {"@and": and_clauses} if and_clauses else {}


   def main():
       init_layout()
       get_column_specification()
       init_attribute_selection()
       init_limit_input()
       init_search_input()

       if not st.session_state.query:
           return
       results = query_cortex_search_service(
           st.session_state.query,
           filter = create_filter_object(st.session_state.attributes)
       )
       display_search_results(results)


   if __name__ == "__main__":
       st.set_page_config(page_title="Cortex AI Search and Summary", layout="wide")
       main()


   Copy

Here’s a brief breakdown of the major components in the Streamlit-in-Snowflake code above:

• get_column_specification uses a DESCRIBE SQL query to get information about the attributes available in the search service and stores them in Streamlit state.

• init_layout sets up the header and intro of the page.

• query_cortex_search_service handles querying the Cortex Search Service via the Python client library.

• create_filter_object processes selected filter attributes from the Streamlit form into the right objects to be used by the Python library for querying Cortex Search.

• distinct_values_for_attribute determines which values are possible for each filterable attribute to populate the dropdown menus.

• init_search_input, init_limit_input, init_attribute_selection initialize inputs for the search query, limit of number of results, and attribute filters.

• display_search_results formats search results into Markdown elements displayed in the results page.

Step 5: Clean up¶

DROP DATABASE IF EXISTS cortex_search_tutorial_db;
DROP WAREHOUSE IF EXISTS cortex_search_tutorial_wh;

Next steps¶

Congratulations! You have successfully built a simple search app on text data in Snowflake. You can move on to Tutorial 2 to see how to layer on Cortex LLM Functions to build an AI chatbot with Cortex Search.
