Snowflake DCM Projects — Extended capabilities (early access)¶

Introduction¶

This document describes a rolling set of new DCM Project capabilities that are available in private preview to selected customers. These features extend the core DCM Projects functionality with additional object types and deployment capabilities.

Over time, this document will be extended with new capabilities as they become available for early testing. Once a capability is sufficiently tested and stable, it will progress into the Public Preview release of DCM Projects and be removed from this document.

Early access for the following DCM capabilities are currently available in private preview:

DDL Hooks
DEFINE TASK with Target State
DEFINE DBT PROJECT
DEFINE PROCEDURE (SQL)

참고

For the main DCM documentation of all publicly available functionality see: https://docs.snowflake.com/en/user-guide/dcm-projects/dcm-projects-overview

DDL Hooks¶

DDL Hooks are intended as an interim solution for defining a broader range of object types - until these are supported natively in DCM using DEFINE statements. DDL Hooks do not offer full functional parity to regular DCM definitions.

Capabilities of DDL Hooks¶

Each DCM Project can contain only 1 pre-hook and 1 post-hook
Each hook can contain multiple DDL statements
DDL statements inside a hook will be executed in the order they are defined by the user
Hooks can contain only 2 types of commands:
CREATE IF NOT EXISTS (recommended)
- for one-time execution to create the object
- Will be skipped any time an object with this fully-qualified name already exists
CREATE OR REPLACE
- Will be executed at every DCM deployment
- To be used if the definition of an existing object has changed and should be replaced completely
Only DDL statements are supported (no USE, no SET, no COPY INTO…)

Key Advantages of DDL Hooks compared to custom SQL pre- and post-scripts¶

DCM Hooks are plannable. You can plan dependencies on objects defined in pre-hooks and objects defined in post-hooks can depend on DCM definitions or pre-hooks.
- Example:
  - Notification Integration defined in DCM pre-hook
  - Schema defined in DCM definitions
  - Alert defined in DCM post-hook (created inside Schema, using Notification Integration)
DCM Hooks support templating configurations
- Leverage the same DCM jinja templating in hook DDLs

⚠️ Functional limitations:¶

Create statements from DCM-Hooks show as operations in the PLAN changeset and the deployment history, but do not include granular details about their individual properties
Errors from executing DCM Hooks don’t show the exact error line and in some cases not the full stack-trace
Removing a DDL statement from a DCM Hook does NOT drop the object
Hooks cannot be defined inside Jinja loops, as it would create multiple pre-/post-hooks. However, Jinja code including loops can be executed inside a hook.

중요

Do not use DCM Hooks for object definitions that contain sensitive information or credentials. The rendered SQL definitions will not redact any values inserted by environment variables!

Comparison between DCM definitions, DDL Hooks, custom SQL pre-/post-scripts¶


Functionality	DCM Definitions	DDL Hooks	Custom SQL scripts
Uses DCM Jinja templating values	✅	✅	🚫
Plannable dependencies	✅	✅	🚫
DDL operations visible in PLAN output	✅	✅	🚫
DDL operations stored in DCM deployment artifacts	✅	✅	🚫
Removing definition -> drops object	✅	🚫	🚫
Changed definition -> alters object	✅	✅ (when using CREATE OR REPLACE)	🚫
Automatically executed in the correct order based on dependencies	✅	🚫	🚫

Supported object types for DDL Hooks¶

Stream
External Stage
Git Repository
File Format
Alert
Semantic View
Share
Network Policy
Network Rule
API Integration
Notification Integration
External Access Integration
Catalog Integration
Security Integration
Storage Integration

Once any of these object types are supported natively with DCM DEFINE statements, the hook support will be deprecated.

Examples:

ATTACH PRE_HOOK
AS [

    CREATE API INTEGRATION IF NOT EXISTS GITHUB_API_{{env_suffix}}
        API_PROVIDER = git_https_api
        API_ALLOWED_PREFIXES = ('https://github.com')
        ALLOWED_AUTHENTICATION_SECRETS = all
        ENABLED = true;

    CREATE NOTIFICATION INTEGRATION IF NOT EXISTS DCM_EMAIL_NOTIFICATIONS_{{env_suffix}}
        TYPE = EMAIL
        ENABLED = true
        ALLOWED_RECIPIENTS = ('jan.sommerfeld@snowflake.com');

    CREATE SHARE IF NOT EXISTS DCM_DEMO_SHARE_{{env_suffix}}
        COMMENT = 'created in prehook so DCM can add grants to share';
];


-- DEFINE SCHEMA DCM_PROJECT_{{env_suffix}}.RAW;

-- GRANT USAGE ON SCHEMA DCM_PROJECT_{{env_suffix}}.RAW ...


ATTACH POST_HOOK
AS [
    CREATE SEMANTIC VIEW IF NOT EXISTS DCM_PROJECT_{{env_suffix}}.SERVE.DASHBOARD_KPI_SEMANTIC_VIEW
      TABLES (
        kpi_summary AS DCM_PROJECT_DEV.SERVE.V_DASHBOARD_KPI_SUMMARY
      )
      DIMENSIONS (
        kpi_summary.total_customers AS TOTAL_CUSTOMERS
          comment = 'Total number of customers',
        kpi_summary.total_orders AS TOTAL_ORDERS
          comment = 'Total number of orders'
      )
      METRICS (
        kpi_summary.lifetime_revenue AS SUM(TOTAL_LIFETIME_REVENUE)
          comment = 'Total lifetime revenue across all customers',
        kpi_summary.avg_order_value AS AVG(AVERAGE_ORDER_VALUE)
          comment = 'Average order value'
      )
      comment = 'Demo semantic view for dashboard KPI summary analytics'
      ;

    CREATE ALERT IF NOT EXISTS DCM_PROJECT_{{env_suffix}}.SERVE.DCM_ALERT
        WAREHOUSE = 'DCM_WH'
        SCHEDULE = 'USING CRON 0 9 * * * UTC'
        IF (EXISTS (
            SELECT 1 FROM DCM_PROJECT_{{env_suffix}}.RAW.INVENTORY
            WHERE IN_STOCK < 10 AND COUNTED_ON >= CURRENT_DATE() - 1
        ))
        THEN
            CALL SYSTEM$SEND_EMAIL(
                'dcm_demo_notification',
                'john.doe@tastybytes.com',
                'DCM Alert: Low Inventory Detected',
                'One or more items have inventory below threshold. Please review the INVENTORY table.'
            );

    CREATE STREAM IF NOT EXISTS DCM_PROJECT_{{env_suffix}}.RAW.NEW_INVENTORY
    on table DCM_PROJECT_{{env_suffix}}.RAW.INVENTORY
        append_only = TRUE
    ;

    CREATE OR REPLACE FILE FORMAT DCM_PROJECT_{{env_suffix}}.RAW.DCM_DEMO_CSV
      TYPE = CSV
      FIELD_DELIMITER = '|'
      SKIP_HEADER = 1
      NULL_IF = ('NULL', 'null')
      EMPTY_FIELD_AS_NULL = true
      COMPRESSION = gzip;
];

DEFINE TASK with Target State¶

DEFINE TASK now supports a new target state property. You can specify in your DCM definitions for each individual Task if it should be STARTED or SUSPENDED after the deployment.

This removes the need to execute additional post-scripts to resume new Tasks. This property is independent of other changes to the Task definition. If you define a Task as STARTED and then suspend it outside of DCM, then a new deployment of that same definition will start the Task again.

DCM Projects handle the dependency resolution between root-task and child-task states.

Example:

DEFINE TASK DCM_DEMO.ANALYTICS.TSK_INGEST_DAILY_ORDERS
    WAREHOUSE = 'DCM_DEMO_WH'
    SCHEDULE = 'USING CRON 0 5 * * * UTC'
    [STARTED | SUSPENDED]    --new DCM specific property to resume task after deployment
AS
   SELECT 1
;

Functional Limitations¶

All Tasks of a Task graph have to be defined within the same DCM Project.

DEFINE DBT PROJECT¶

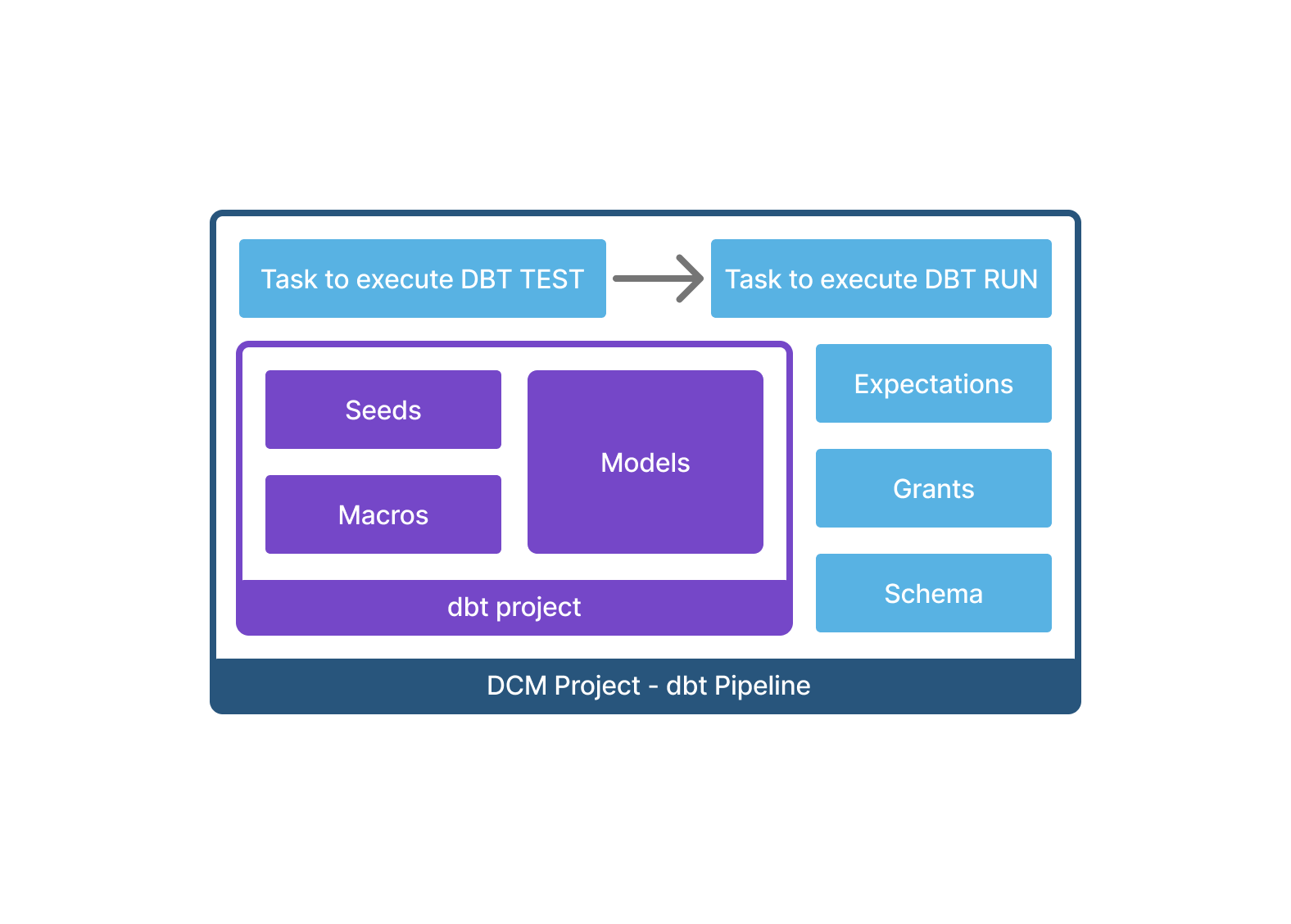

DCM Projects now support dbt. You can define a dbt project, its orchestration, infrastructure, and access control together in a single DCM project folder - then deploy everything to any environment with one command.

Most commonly used is the combination of dbt projects + Tasks to execute dbt test and dbt run on a defined schedule. You can define a DAG of Tasks to orchestrate runs of different dbt projects or individual models.

Create a DCM project for dbt¶

You can take your existing dbt project folder, which includes

models
dbt_project.yml
packages.yml
Profiles.yml
Etc.

and move it inside a DCM Project structure.

Then add the DEFINE DBT PROJECT statement to your DCM definitions with:

The relative path from the manifest to the dbt folder
A default target (which can use jinja templating to match the DCM deployment target)

In addition you can add Tasks to execute dbt commands after the deployment as well as grants on the dbt project object or future tables and views.

define dbt project {{db}}.PROJECTS.DBT_PIPELINE
    from 'sources/dbt/dbt_pipeline'    --relative path from manifest to dbt folder
    default_target = '{{dbt_env}}'
;


define task {{db}}.PROJECTS.RUN_DBT_PIPELINE  -- optional: Task(s) to execute your deployed dbt project
    warehouse = {{wh}}
    schedule = '60 MINUTE'
    started     -- (optional) new DCM-specific property that defines the target-state after a DCM deployment
  as
    execute dbt project {{db}}.PROJECTS.DBT_PIPELINE args='run';

define task {{db}}.PROJECTS.TEST_DBT_PIPELINE
    warehouse = {{wh}}
    after {{db}}.PROJECTS.RUN_DBT_PIPELINE
    started
  as
    execute dbt project {{db}}.PROJECTS.DBT_PIPELINE args='test';

If you need to run dbt deps to get external packages, you can run CREATE NETWORK RULE IF NOT EXISTS and CREATE EXTERNAL ACCESS INTEGRATION IF NOT EXISTS in a DCM pre-hook (DCM Hooks are also part of this private preview).

Plan & deploy a DCM project for dbt¶

Run your regular DCM plan and deploy commands. If the DEFINE DBT PROJECT statement in your definitions has changed since the last successful deployment, then PLAN will:

Render the jinja templating
Compile the entire DCM project
Compile the dbt project
Show the dbt project as part of the plan output

Note that tables that are created by dbt will not show as “DCM managed entities” as they are not defined directly in the DCM definitions. Removing the DEFINE DBT statement will drop the dbt project object on the next deployment. But it will not drop the tables created by dbt.

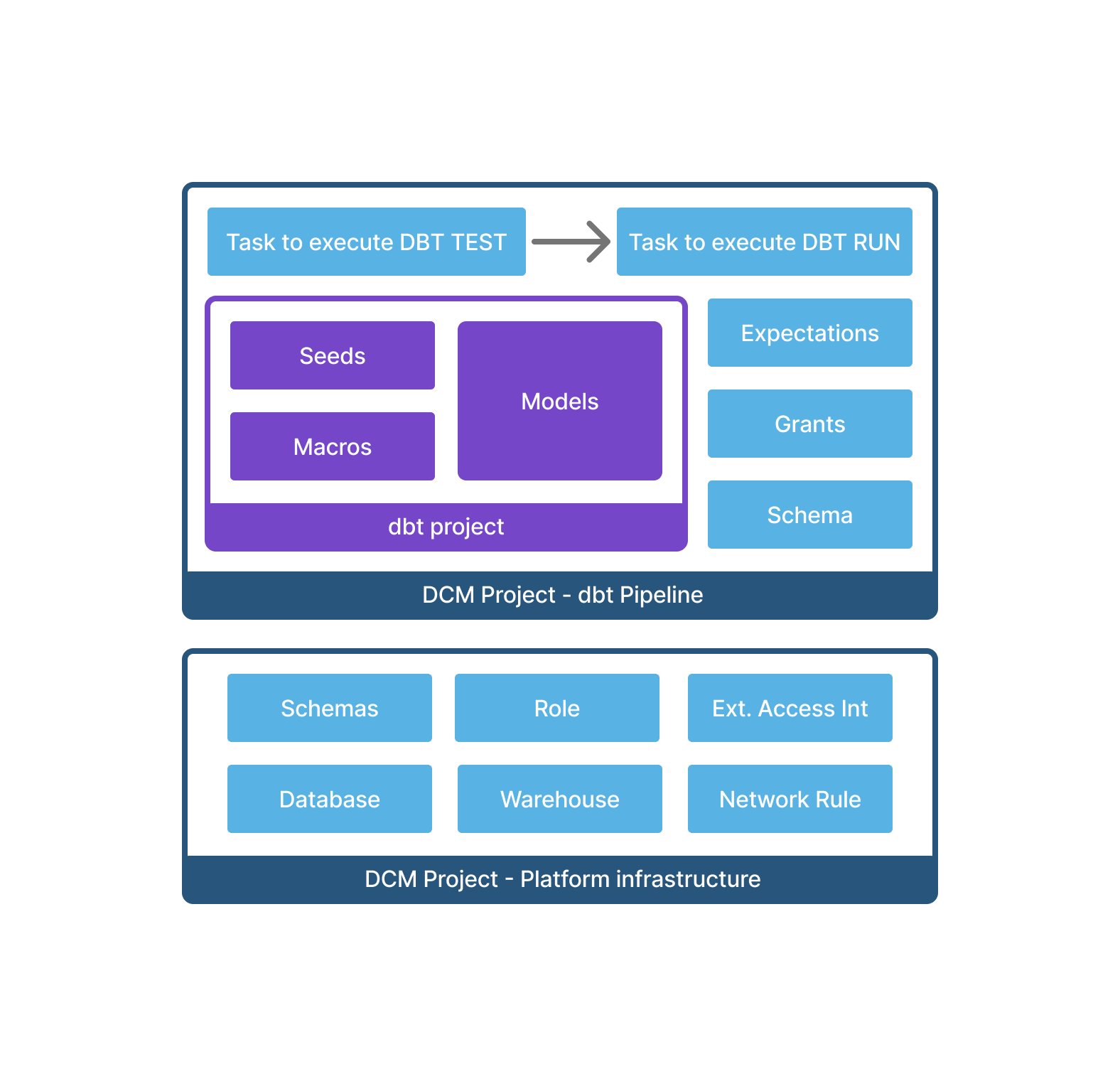

You can also consider creating a new DCM Project for dbt on top of an existing “platform” project.

Functional Limitations¶

dbt templating variables and configuration values are completely isolated from DCM jinja templating. (there is no variable pass-through from the DCM manifest)
PLAN and DEPLOY output only shows the operation for a dbt project (CREATE / ALTER / DROP) but it does not show more granular changes in the dbt project configuration or models.
When running DCM PLAN for projects that include dbt projects, then dbt compile is executed for these dbt projects. In order for compile to succeed and therefore the DCM plan to succeed, the parent schema and all source tables for the dbt models have to be deployed already. If needed you can deploy the DCM project first without the dbt part and then test and deploy the dbt project.
Dependencies: dbt models can refer to other objects defined in DCM but other DCM objects can not reference tables created by dbt, meaning dbt projects can not have downstream dependencies.
For now only relative paths to dbt project files are supported. You can not specify a path to another repo or folder outside of the DCM project.

DEFINE PROCEDURE (SQL)¶

DCM Projects now support defining SQL stored procedures using the DEFINE PROCEDURE statement. This works the same as a standard Snowflake CREATE OR ALTER PROCEDURE statement, but uses the DEFINE keyword to deploy it via DCM Projects.

Example:

DEFINE PROCEDURE {{db}}.{{schema}}.REFRESH_DAILY_SUMMARY()
  RETURNS VARCHAR
  LANGUAGE SQL
AS
BEGIN
  TRUNCATE TABLE {{db}}.{{schema}}.DAILY_SUMMARY;

  INSERT INTO {{db}}.{{schema}}.DAILY_SUMMARY
    SELECT
      CURRENT_DATE() AS REPORT_DATE,
      COUNT(*) AS TOTAL_ORDERS,
      SUM(AMOUNT) AS TOTAL_REVENUE
    FROM {{db}}.{{schema}}.ORDERS
    WHERE ORDER_DATE = CURRENT_DATE();

  RETURN 'Daily summary refreshed';
END;

Functional Limitations¶

Only SQL-language procedures (LANGUAGE SQL) are supported. Other languages (Python, Java, Scala, JavaScript) are not yet supported in DCM definitions.
