JDBC Datasources Setup for Snowpark Connect for Spark¶

This section provides a guide and sample code for reading data from external databases and writing data to external databases (such as MySQL and PostgreSQL) using the Snowpark Connect JDBC data source feature. It covers both client-side and Snowflake Notebook setup.

Part 1: Client-side setup (MySQL)¶

This setup is required when running Snowpark Connect from a local client application, such as a Python script or IDE.

Prerequisites¶

Java Runtime Environment (JRE) / Java Development Kit (JDK):
- Install a JRE or JDK. The architecture (for example, 64-bit) of your Java installation must match the architecture of your Python installation.
- Example source for installation: Adoptium Temurin Releases (if using Java 11).
Set ``JAVA_HOME`` Environment Variable:
- Configure the JAVA_HOME environment variable to point to the root directory of your Java installation.
- Example (macOS/Linux):

export JAVA_HOME=/path/to/your/jdk/home

Set ``CLASSPATH`` Environment Variable:
- Add the path to your specific database’s JDBC driver .jar file to the CLASSPATH environment variable. This allows the Java environment to find the necessary driver.
- Example (for MySQL driver):

export CLASSPATH=$CLASSPATH:/path/to/your/driver/mysql-connector-j-9.2.0.jar

Sample client code (read from MySQL)¶

This example demonstrates how to read a table from a MySQL database using spark_session.read.jdbc().

from pyspark.sql import Row

# Adjust the URL for your server host, port, and database name
MYSQL_JDBC_URL = "jdbc:mysql://localhost/test_db"

# Ensure this driver name matches your version of the JDBC driver
MYSQL_JDBC_DRIVER = "com.mysql.cj.jdbc.Driver"

def test_jdbc_read_from_mysql(self, spark_session):
    # This code snippet uses the Snowpark Connect Spark session
    jdbc_df = spark_session.read.jdbc(
        MYSQL_JDBC_URL,
        "my_schema.my_table",  # Specify your table name in MySQL
        properties={
            "user": "root",           # Your MySQL user name
            "password": "****",       # Your password for MySQL
            "driver": MYSQL_JDBC_DRIVER,
        },
    ).collect()

    # After reading via JDBC, the data is loaded into a temporary table in Snowflake.
    # You can now perform any standard DataFrame operations supported by Snowpark Connect.

Sample client code (write to MySQL)¶

This example demonstrates how to write data into a MySQL database using spark_session.write.jdbc().

from pyspark.sql import Row

# Adjust the URL for your server host, port, and database name
MYSQL_JDBC_URL = "jdbc:mysql://localhost/test_db"

# Ensure this driver name matches your version of the JDBC driver
MYSQL_JDBC_DRIVER = "com.mysql.cj.jdbc.Driver"

def test_jdbc_write_overwrite_to_mysql(self, spark_session):
    # This code snippet uses the Snowpark Connect Spark session
    jdbc_df = spark_session.createDataFrame(
        [
            Row(a=1, b=2.0, c="test1"),
            Row(a=2, b=3.0, c="test2"),
            Row(a=4, b=5.0, c="test3"),
        ]
    )

    jdbc_df.write.jdbc(
        MYSQL_JDBC_URL,
        "my_schema.my_table2",  # Specify your table name in MySQL
        mode="overwrite",
        properties={
            "user": "root",        # Your MySQL user name
            "password": "****",    # Your password for MySQL
            "driver": MYSQL_JDBC_DRIVER,
        },
    )

Part 2: Snowflake Warehouse Notebook setup (PostgreSQL)¶

This setup is used when running Snowpark Connect directly within a Snowflake Notebook environment.

Setup steps¶

Add the ``snowpark-connect`` Package:
- Ensure the snowflake-snowpark-connect package is added to your notebook environment.

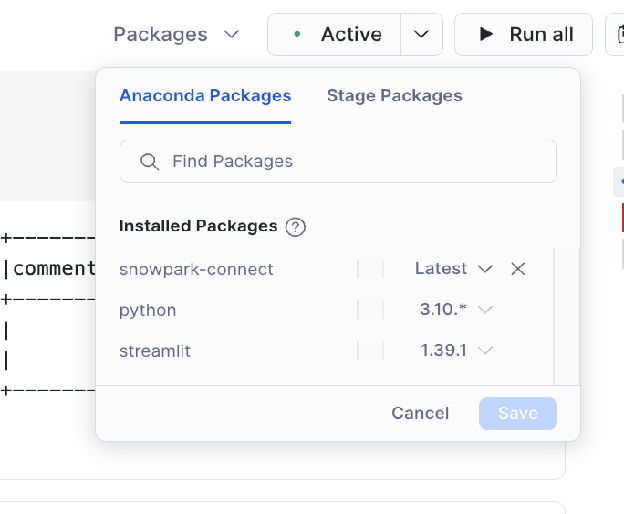

Adding the snowflake-snowpark-connect package in Snowflake Notebook

Download and Upload JDBC Driver:
- Download the appropriate JDBC driver .jar file for your external database (for example, PostgreSQL JDBC Driver).
- Upload the downloaded .jar file directly into your notebook environment.
Activate External Integrations (Network Rule & Integration):
- Snowflake requires an External Access Integration to allow the notebook to communicate with external network locations. You must define a Network Rule for the host and port of your external database.

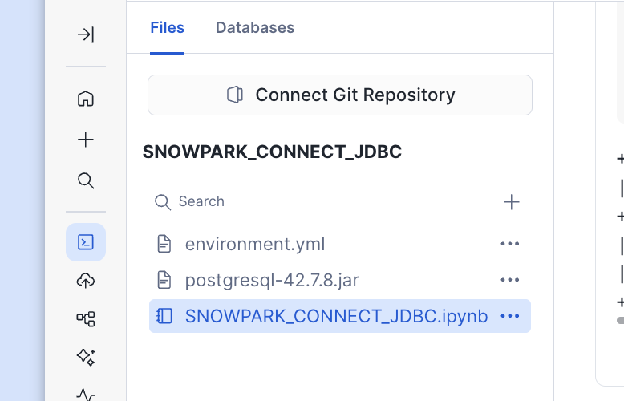

Configuring network rule settings in Snowflake Notebook

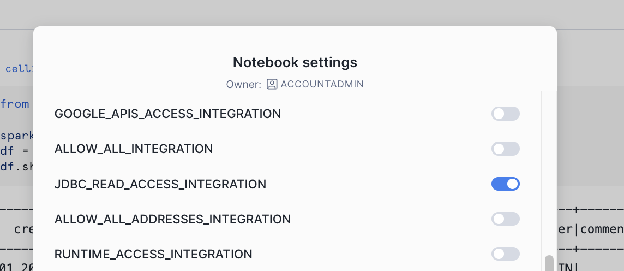

Uploading the JDBC driver JAR file in Snowflake Notebook

-- 1. Create a Network Rule for the external database host and port
CREATE OR REPLACE NETWORK RULE JDBC_READ_NETWORK_RULE
  MODE = EGRESS
  TYPE = HOST_PORT
  VALUE_LIST = ('hh-pgsql-public.ebi.ac.uk:5432'); -- REPLACE with your host:port

-- 2. Create the External Access Integration using the new Network Rule
CREATE OR REPLACE EXTERNAL ACCESS INTEGRATION JDBC_READ_ACCESS_INTEGRATION
  ALLOWED_NETWORK_RULES = (JDBC_READ_NETWORK_RULE)
  ENABLED = true;

-- NOTE: This integration must be referenced/activated within your notebook's settings.

Sample Warehouse Notebook code (read from PostgreSQL)¶

This example shows the necessary Python code to initialize the session, load the driver, and read data from PostgreSQL.

from snowflake import snowpark_connect
import jpype

# Initialize the Spark session for Snowpark Connect
spark = snowpark_connect.server.init_spark_session()
df = spark.sql("show schemas").limit(2)
df.show()

# Add the uploaded JDBC driver JAR to the Java Classpath using jpype
# Adjust the path to match the name of the JAR file you uploaded
jpype.addClassPath('/tmp/appRoot/postgresql-42.7.8.jar')

# Using public PostgreSQL DB as an example: https://rnacentral.org/help/public-database
jdbc_df = spark.read.jdbc(
    # Adjust this URL as per your server host, port, and database
    "jdbc:postgresql://hh-pgsql-public.ebi.ac.uk:5432/pfmegrnargs",
    "",  # Empty string for table name when providing a custom query
    properties={
        "user": "reader",                # Your PostgreSQL user name
        "password": "***",               # Your password for PostgreSQL
        "driver": "org.postgresql.Driver",
        # Use the "query" property for a custom SQL statement
        "query": """SELECT
  upi,     -- RNAcentral URS identifier
  taxid,   -- NCBI taxid
  ac       -- external accession
FROM xref
WHERE ac IN ('OTTHUMT00000106564.1', 'OTTHUMT00000416802.1')"""
    },
)

jdbc_df.show()

Sample Warehouse Notebook code (write to PostgreSQL)¶

This example shows the necessary Python code to initialize the session, load the driver, and write data into PostgreSQL.

from snowflake import snowpark_connect
from pyspark.sql import Row
import jpype

# Initialize the Spark session for Snowpark Connect
spark = snowpark_connect.server.init_spark_session()
df = spark.sql("show schemas").limit(2)
df.show()

# Add the uploaded JDBC driver JAR to the Java Classpath using jpype
# Adjust the path to match the name of the JAR file you uploaded
jpype.addClassPath('/tmp/appRoot/postgresql-42.7.8.jar')

# Create dataframe
jdbc_df = spark.createDataFrame(
    [
        Row(a=1, b=2.0, c="test1"),
        Row(a=2, b=3.0, c="test2"),
        Row(a=4, b=5.0, c="test3"),
    ]
)

# Using public PostgreSQL DB as an example: https://rnacentral.org/help/public-database
jdbc_df.write.jdbc(
    # Adjust this URL as per your server host, port, and database
    "jdbc:postgresql://hh-pgsql-public.ebi.ac.uk:5432/pfmegrnargs",
    "public.my_table2",  # Specify your table name in PostgreSQL
    mode="overwrite",
    properties={
        "user": "writer",                # Your PostgreSQL user name
        "password": "***",               # Your password for PostgreSQL
        "driver": "org.postgresql.Driver",
    },
)

Part 3: Snowflake Workspace Notebook setup (PostgreSQL)¶

This setup is used when running Snowpark Connect directly within a Snowflake Workspace Notebook environment.

Setup steps¶

The snowpark-connect package is included in Workspace Notebook by default.
Download and Upload JDBC Driver:
- Download the appropriate JDBC driver .jar file for your external database (for example, PostgreSQL JDBC Driver).
- Upload the downloaded .jar file directly into your notebook environment.

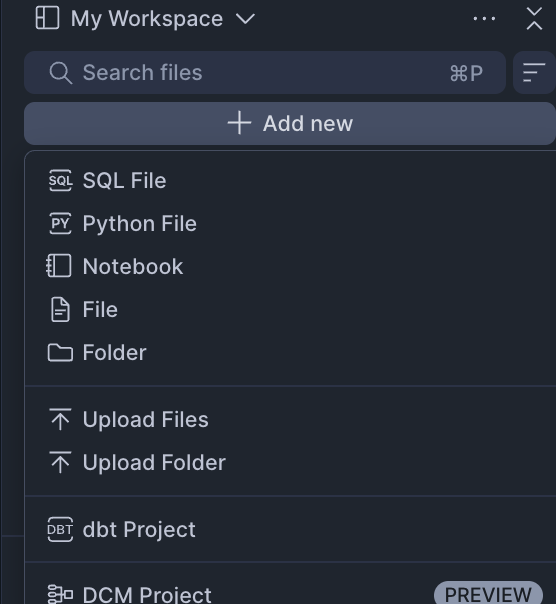

Uploading JDBC driver in Snowflake Workspace Notebook

Create External Integration:

-- 1. Create a Network Rule for the external database host and port
CREATE OR REPLACE NETWORK RULE JDBC_READ_NETWORK_RULE
  MODE = EGRESS
  TYPE = HOST_PORT
  VALUE_LIST = ('hh-pgsql-public.ebi.ac.uk:5432'); -- REPLACE with your host:port

-- 2. Create the External Access Integration using the new Network Rule
CREATE OR REPLACE EXTERNAL ACCESS INTEGRATION JDBC_READ_ACCESS_INTEGRATION
  ALLOWED_NETWORK_RULES = (JDBC_READ_NETWORK_RULE)
  ENABLED = true;

-- NOTE: This integration must be referenced/activated within your notebook's settings.

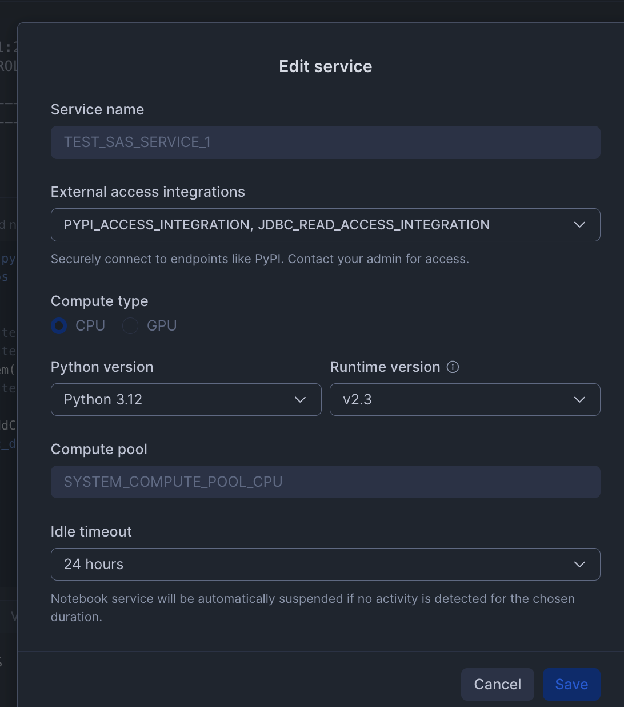

Activate External Integrations (Network Rule & Integration):
- Snowflake requires an External Access Integration to allow the notebook to communicate with external network locations. You must define a Network Rule for the host and port of your external database.

Sample Workspace Notebook code (read from PostgreSQL)¶

This example shows the necessary Python code to initialize the session, load the driver, and read data from PostgreSQL.

from snowflake import snowpark_connect
import jpype
import os

# Initialize the Spark session for Snowpark Connect
spark = snowpark_connect.server.init_spark_session()
df = spark.sql("show schemas").limit(2)
df.show()

# Add the uploaded JDBC driver JAR to the Java Classpath using jpype
# Adjust the path to match the name of the JAR file you uploaded
# Copy the driver to /tmp directory
os.system("cp ./postgresql-42.7.8.jar /tmp/postgresql-42.7.8.jar")
jpype.addClassPath('/tmp/postgresql-42.7.8.jar')

# Using public PostgreSQL DB as an example: https://rnacentral.org/help/public-database
jdbc_df = spark.read.jdbc(
    # Adjust this URL as per your server host, port, and database
    "jdbc:postgresql://hh-pgsql-public.ebi.ac.uk:5432/pfmegrnargs",
    "",  # Empty string for table name when providing a custom query
    properties={
        "user": "reader",                # Your PostgreSQL user name
        "password": "***",               # Your password for PostgreSQL
        "driver": "org.postgresql.Driver",
        # Use the "query" property for a custom SQL statement
        "query": """SELECT
  upi,     -- RNAcentral URS identifier
  taxid,   -- NCBI taxid
  ac       -- external accession
FROM xref
WHERE ac IN ('OTTHUMT00000106564.1', 'OTTHUMT00000416802.1')"""
    },
)

jdbc_df.show()

Sample Workspace Notebook code (write to PostgreSQL)¶

This example shows the necessary Python code to initialize the session, load the driver, and write data into PostgreSQL.

from snowflake import snowpark_connect
from pyspark.sql import Row
import jpype
import os

# Initialize the Spark session for Snowpark Connect
spark = snowpark_connect.server.init_spark_session()
df = spark.sql("show schemas").limit(2)
df.show()

# Add the uploaded JDBC driver JAR to the Java Classpath using jpype
# Adjust the path to match the name of the JAR file you uploaded
# Copy the driver to /tmp directory
os.system("cp ./postgresql-42.7.8.jar /tmp/postgresql-42.7.8.jar")
jpype.addClassPath('/tmp/postgresql-42.7.8.jar')

# Create dataframe
jdbc_df = spark.createDataFrame(
    [
        Row(a=1, b=2.0, c="test1"),
        Row(a=2, b=3.0, c="test2"),
        Row(a=4, b=5.0, c="test3"),
    ]
)

# Using public PostgreSQL DB as an example: https://rnacentral.org/help/public-database
jdbc_df.write.jdbc(
    # Adjust this URL as per your server host, port, and database
    "jdbc:postgresql://hh-pgsql-public.ebi.ac.uk:5432/pfmegrnargs",
    "public.my_table2",  # Specify your table name in PostgreSQL
    mode="overwrite",
    properties={
        "user": "writer",                # Your PostgreSQL user name
        "password": "***",               # Your password for PostgreSQL
        "driver": "org.postgresql.Driver",
    },
)

Supported datasources¶

SQL Server
MySQL
PostgreSQL
