Google Cloud Private Service Connect and Snowflake

This topic describes concepts and how to configure Google Cloud Private Service Connect to connect your Google Cloud Virtual Private Cloud (VPC) network subnet to your Snowflake account hosted on Google Cloud without traversing the public Internet.

Note that Google Cloud Private Service Connect is not a service provided by Snowflake. It is a Google service that Snowflake enables for use with your Snowflake account.

Overview

Google Cloud Private Service Connect provides private connectivity to Snowflake by ensuring that access to Snowflake is through a private IP address. Snowflake appears as a resource in your network (that is, customer network), but the traffic flows one-way from your VPC to Snowflake VPC over the Google networking backbone. This setup significantly simplifies the network configuration while providing secure and private communication.

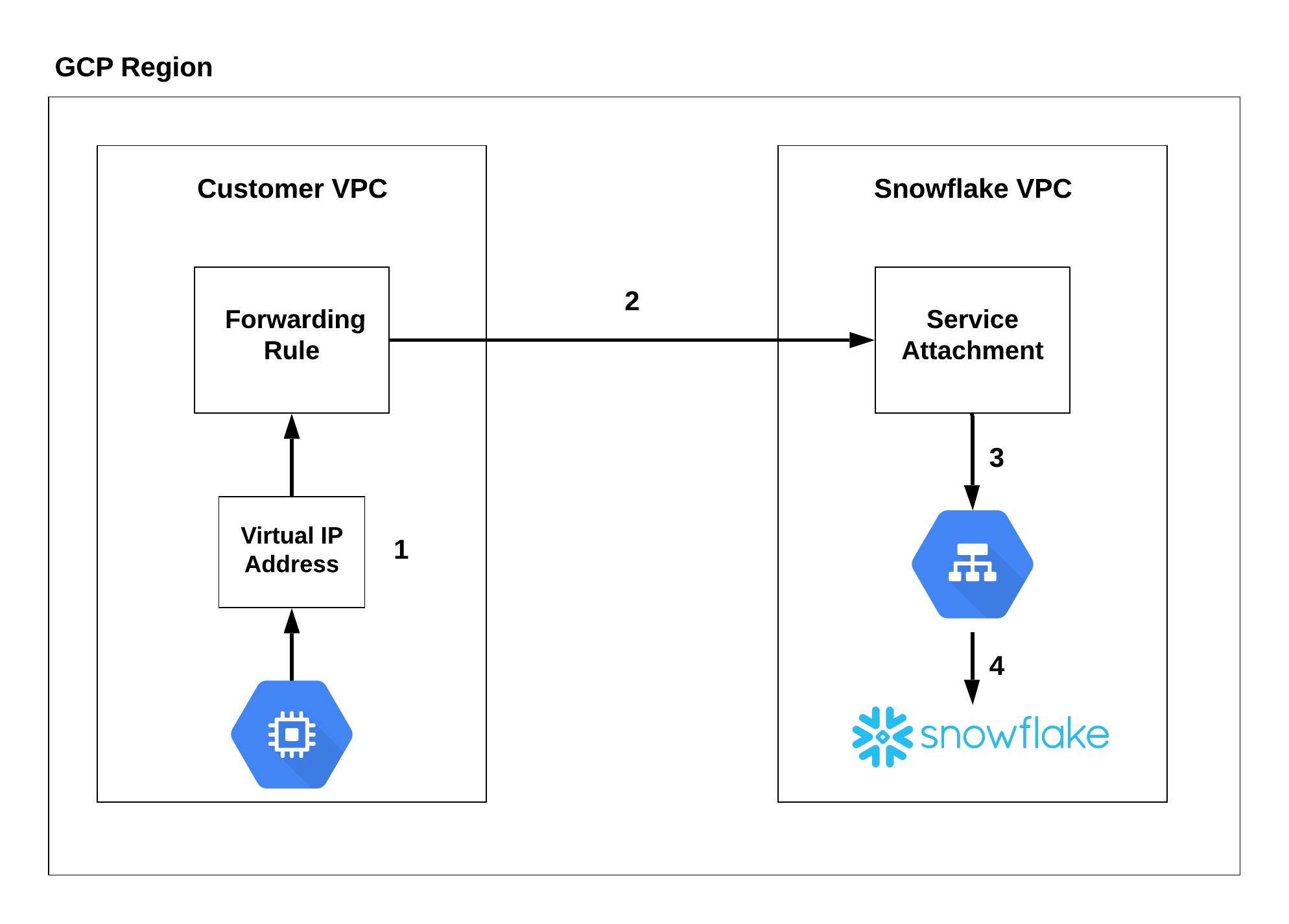

The following diagram summarizes the Google Cloud Private Service Connect architecture with respect to the customer Google Cloud VPC and the Snowflake service.

Architecture overview

The Google Compute Engine (that is, a virtual machine) connects to a private, virtual IP address that routes to a forwarding rule (1). The forwarding rule connects to the service attachment through a private connection (2). The connection is routed through a load balancer (3) that redirects to Snowflake (4).

Limitations

Authorize Private Service Connect for your account

This section describes how to authorize Snowflake to accept network traffic over Private Service Connect.

  1. Sign in to the Google Cloud account that has access to the project that you plan to authorize. You can use your Google Cloud CLI environment to execute the following:

    gcloud auth login

    Copy

    If you want to check the current account, execute the following:

    gcloud auth list

    Copy
  2. Use the Google Cloud CLI to create an access token by executing the following command:

    gcloud auth print-access-token

    Copy

    This command generates an access token for your Google Cloud account. By default, the token expires after 1 hour. If you need to authorize, verify, or revoke authorization for Private Service Connect after the token expires, you’ll need to repeat this step to generate a new token.

    If you have a service account to the Google Cloud project, you can generate a short-lived access token instead, but be sure the lifetime of the token is long enough to finish these configuration steps.

  3. As a Snowflake account administrator (that is, a user with the ACCOUNTADMIN system role), call the SYSTEM$AUTHORIZE_PRIVATELINK function to authorize (that is, enable) Private Service Connect for your Snowflake account. The syntax of this function for Private Service Connect is:

    SELECT SYSTEM$AUTHORIZE_PRIVATELINK ( '<gcp_project_id>' , '<access_token>' )

    Copy

    Where:

    • gcp_project_id is the Google Cloud Project ID from which you plan to create endpoints and connect to Snowflake securely.

    • access_token is the access token that you generated in a previous step in this configuration procedure.

    For example:

    USE ROLE ACCOUNTADMIN;

    SELECT SYSTEM$AUTHORIZE_PRIVATELINK (
     'my-gcp-project-id',
     'ya29.a0AcM612zT4pJaXdYfwgY8aiMoDE9W_xkqQ20coFTB1TJcImKDPo...'
    );

    Copy
  4. Call the SYSTEM$GET_PRIVATELINK function to verify that Private Service Connect was successfully authorized for your Snowflake account. Pass in the same arguments that you used to authorize. For example:

    SELECT SYSTEM$GET_PRIVATELINK(
     'my-gcp-project-id',
     'ya29.a0AcM612zT4pJaXdYfwgY8aiMoDE9W_xkqQ20coFTB1TJcImKDPo...'
    );

    Copy

    Snowflake returns Account is authorized for PrivateLink if the account is authorized for Private Service Connect.

Configure your Google Cloud VPC environment

This section covers the Snowflake-specific details for configuring your Google Cloud VPC environment.

Important

Snowflake is not responsible for the configuration of your Google Cloud environment. This procedure shows the basics of using the Google Cloud CLI, but is not a definitive guide. For example:

  • You could use the Google Cloud console to configure your Google Cloud environment instead of the Google Cloud CLI, which would change the steps. For example, when using the Google Cloud console, you are creating an endpoint, not a forwarding rule.

  • It does not show you how to configure required firewall updates and DNS records.

  • It does not show you how to make an endpoint available in other regions (Private Service Connect endpoints are regional resources). For more information about making an endpoint available in other regions, see the Google documentation.

For additional help, contact your internal Google Cloud administrator.

  1. As a Snowflake account administrator (that is, a user with the ACCOUNTADMIN system role), open a worksheet and call the SYSTEM$GET_PRIVATELINK_CONFIG function. You need to save the output for subsequent steps.

    For example:

    USE ROLE ACCOUNTADMIN;

    SELECT key, value FROM TABLE(flatten(input=>parse_json(system$get_privatelink_config())));

    Copy
  2. Use the Google Cloud CLI to update the gcloud library to the latest version:

    gcloud components update

    Copy
  3. Authenticate to Google Cloud using the following command:

    gcloud auth login

    Copy
  4. In your Google Cloud VPC, set the project ID in which the forwarding rule should reside.

    gcloud config set project <project_id>

    Copy

    To obtain a list of project IDs, execute the following command:

    gcloud projects list --sort-by=projectId

    Copy
  5. In your Google Cloud VPC, create a virtual IP address:

    gcloud compute addresses create <customer_vip_name> \
    --subnet=<subnet_name> \
    --addresses=<customer_vip_address>
    --region=<region>

    Copy

    Where:

    • customer_vip_name specifies the name of the virtual IP rule (for example, psc-vip-1).

    • subnet_name specifies the name of the subnet.

    • customer_vip_address specifies an IP address to which all private connectivity URLs resolve. Specify an IP address from your network or use CIDR notation to specify a range of IP addresses.

    • region specifies the cloud region where your Snowflake account is located.

    For example:

    gcloud compute addresses create psc-vip-1 \
    --subnet=psc-subnet \
    --addresses=192.168.3.3 \
    --region=us-central1

    Copy

    Output:

    Created [https://www.googleapis.com/compute/v1/projects/docstest-123456/regions/us-central1/addresses/psc-vip-1].

  6. Create a forwarding rule to have your subnet route to the Private Service Connect endpoint, and then to the Snowflake service endpoint.

    gcloud compute forwarding-rules create <name> \
    --region=<region> \
    --network=<network_name> \
    --address=<customer_vip_name> \
    --target-service-attachment=<privatelink-gcp-service-attachment>

    Copy

    Where:

    • name specifies the name of the forwarding rule.

    • region specifies the cloud region where your Snowflake account is located.

    • network_name specifies the name of the network for this forwarding rule.

    • customer_vip_name specifies the <name> value (that is, psc-vip-1) of the virtual IP address created in the previous step.

    • privatelink-gcp-service-attachment specifies the endpoint for the Snowflake service, which you obtained when you executed the SYSTEM$GET_PRIVATELINK_CONFIG function in an earlier step.

    For example:

    gcloud compute forwarding-rules create test-psc-rule \
    --region=us-central1 \
    --network=psc-vpc \
    --address=psc-vip-1 \
    --target-service-attachment=projects/us-central1-deployment1-c8cc/regions/us-central1/serviceAttachments/snowflake-us-central1-psc

    Copy

    Output:

    Created [https://www.googleapis.com/compute/projects/mdlearning-293607/regions/us-central1/forwardingRules/test-psc-rule].

  7. Use the following command to verify the forwarding-rule was created successfully:

    gcloud compute forwarding-rules list --regions=<region>

    Copy

    Where:

    • region is the cloud region where your Snowflake account is located. For example, if your Snowflake account is located in the europe-west2 region, replace <region> with europe-west2.

    For a complete list of Google Cloud regions and their formatting, see Viewing a list of available regions.

  8. Update your DNS settings.

    All requests to Snowflake need to be routed through the Private Service Connect endpoint so that the URLs returned by the SYSTEM$GET_PRIVATELINK_CONFIG function resolve to the VIP address that you created (<customer_vip_address>).

    The values to obtain from the output of SYSTEM$GET_PRIVATELINK_CONFIG depend on which Snowflake features you are accessing via private connectivity. For a description of the possible values, see Return values.

    Note that the values for regionless-snowsight-privatelink-url and snowsight-privatelink-url allow access to Snowsight and the Snowflake Marketplace using private connectivity. However, there is additional configuration if you want to enable URL redirects. For information, see Snowsight & Private Connectivity.

    Note

    A full explanation of DNS configuration is beyond the scope of this procedure. For example, you can choose to integrate a private DNS zone into your environment using Cloud DNS. Please consult your internal Google Cloud and cloud infrastructure administrators to configure and resolve the URLs in DNS properly.

Connect to Snowflake

Before connecting to Snowflake, you can optionally leverage SnowCD (Snowflake Connectivity Diagnostic tool) to evaluate the network connection with Snowflake and Private Service Connect. For more information, see SnowCD and SYSTEM$ALLOWLIST_PRIVATELINK.

To connect to Snowflake with your private connectivity account, see Connecting with a URL.

Revoke authorization

If it’s necessary to disable Private Service Connect in your Snowflake account, call the SYSTEM$REVOKE_PRIVATELINK function, using the same argument values that you used to authorize the account. For example:

SELECT SYSTEM$REVOKE_PRIVATELINK(
 'my-gcp-project-id',
 'ya29.a0AcM612zT4pJaXdYfwgY8aiMoDE9W_xkqQ20coFTB1TJcImKDPo...'
);
Copy

Using SSO with Google Private Service Connect

Snowflake supports using SSO with Google Cloud Private Service Connect. For more information, see:

Using Client Redirect with Google Cloud Private Service Connect

Snowflake supports using Client Redirect with Google Cloud Private Service Connect.

For more information, see Redirecting client connections.

Using Replication & Tri-Secret Secure with Private Connectivity

Snowflake supports replicating your data from the source account to the target account, regardless of whether you enable Tri-Secret Secure or this feature in the target account.
