Document AI table extraction: Best practices¶

Use one model build for both entity and table extraction¶

To extract both entity and table values, use the table extraction processing type when creating a model build. Define values for all tables, and then add an additional table to group all entities in it. For column names, use the names of extracted entities. Note that training might be needed to improve the results.

Use one model build for a specific type of document¶

Each model build must contain documents of the same type, and the data that you want to extract should be similar for most of the tables. If the number of columns in the source document differs from one document to another, but all documents contain a defined subset of columns to be extracted and the common columns have the same or a similar name and location, then those common columns can be extracted.

For example, invoices may have different numbers of columns with various data, but if all of the tables have the same first three columns — Item Description, Quantity, and Price — that data can be extracted.

Use natural language to define column names¶

You can copy the column names from the document so that they’re exactly the same. For example, don’t name the columns product_code or REPORT_DATE; instead, name them Product Code or Report Date.

When reviewing, specify the empty rows correctly¶

When you review the answers provided by the model, for empty rows, use - in each cell, instead of None. Rows with None in each cell are ignored by the model during training.

Define the columns in the same order they appear in the document¶

To improve accuracy, define the columns in the same order as they appear in the document, which is usually from left to right, or top to bottom for the transposed tables. If you choose to define the order differently, training might be needed.

However, for columns that group multiple rows, such as Invoice Number and Invoice Date, add the columns at the beginning. For example:

• Invoice Number

• Invoice Date

• Item Code

• Item Name

• Quantity

Define values using casing from the document¶

When possible, define values using casing (uppercase and lowercase) from the document. If the casing in the document is varied, use capitalization.

Use the locator field only when needed¶

Locator field is optional; in most cases, you don’t have to fill it in. However, if there are multiple similar tables in a document, the model might answer inaccurately. If the answers come from a different source table than expected, try using the locator field. Add information that helps the model identify the right table, such as the table title or number.

Add a section column to describe the layout of the table¶

If the table is divided into multiple named sections, add a section column. This helps the model understand the layout better and improve the accuracy. For example, you can name the column Section, Item section, or Item category. If there is a second level of nesting in the sections, you can add two columns: Section and Subsection.

To group values, create an additional column¶

As described in Use one model build for both entity and table extraction, you can add an additional table to contain all the entities. However, you can also add a column to the existing table instead of creating a separate table. In this way, you can join results from the whole document set in a single table; for example:

Note that the value in the first column is repeated for corresponding items.

If you want to add more columns or the table is large, Snowflake recommends creating an additional table with a single row (as explained in the Use one model build for both entity and table extraction section), to optimize cost.

Make the column names distinguishable between documents¶

Try to semantically distinguish a column. Don’t use names such as col1, val1, item1.

In some cases, transposition can work better, especially when the row names don’t differ between documents or differ slightly and are within a closed set of values.

Note that training on the specified column set might improve the results.

Use the parent name as a prefix when working with hierarchical headers¶

To extract information from tables with hierarchical headers, join the header path using each parent name as a prefix. For example, for the following table, define the columns as:

• Category A Type X Column 1

• Category A Type Y Column 2

• Category A Type Y Column 3

• Category B Column 4

• Category B Column 5

Transpose the tables if needed¶

You can extract information from transposed tables by using values from the first column of the table in the document as column names in the output table.

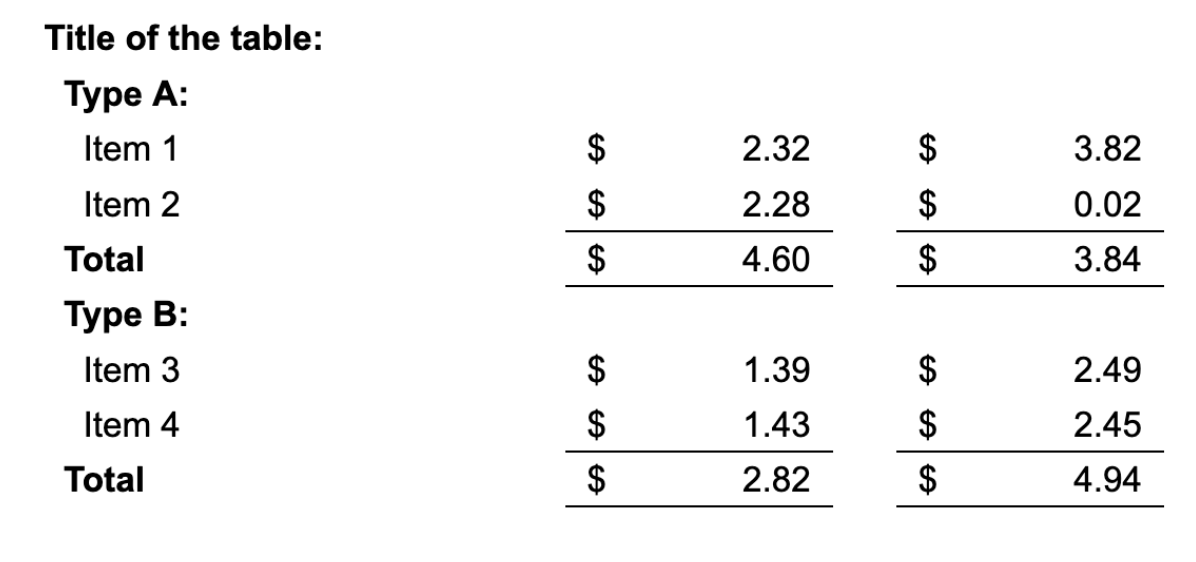

For example, for the following table, name the columns:

• Type A: Item 1

• Type A: Item 2

• Type B: Item 3

• Type B: Item 4

Note that this example includes hierarchical headers.

For large tables, split the document¶

The model for table extraction returns answers that are up to 2048 tokens long. It means that the model stops extracting when it reaches that limit. You can approach this in the following ways:

• If the table covers several pages, split the document into multiple one-page documents, and join the results in postprocessing.

• If the table is so dense that the data can’t be extracted even from a single page, divide the table by columns.

  For example, if the table contains 10 columns, try defining two separate values: one with 5 columns from the left half, and the other with 5 columns from the right half of the table. You might need to experiment with the column choice for best results.

Create names for the columns that don’t have a name in the document¶

If the first column in the document doesn’t have a name, you must create that name yourself when defining the value. You can approach it in the following ways:

• Use the table title or a significant part of the title.

• Create a descriptive name that represents the data in the column, e.g. description, type of asset, year, category.

Compare data from two different periods of time¶

If you want to compare data from two different periods of time, for example, years 2023 and 2024 in financial documents such as annual reports, you can prefix the columns with “current” and “previous”. Note that training might be needed to improve the results.
